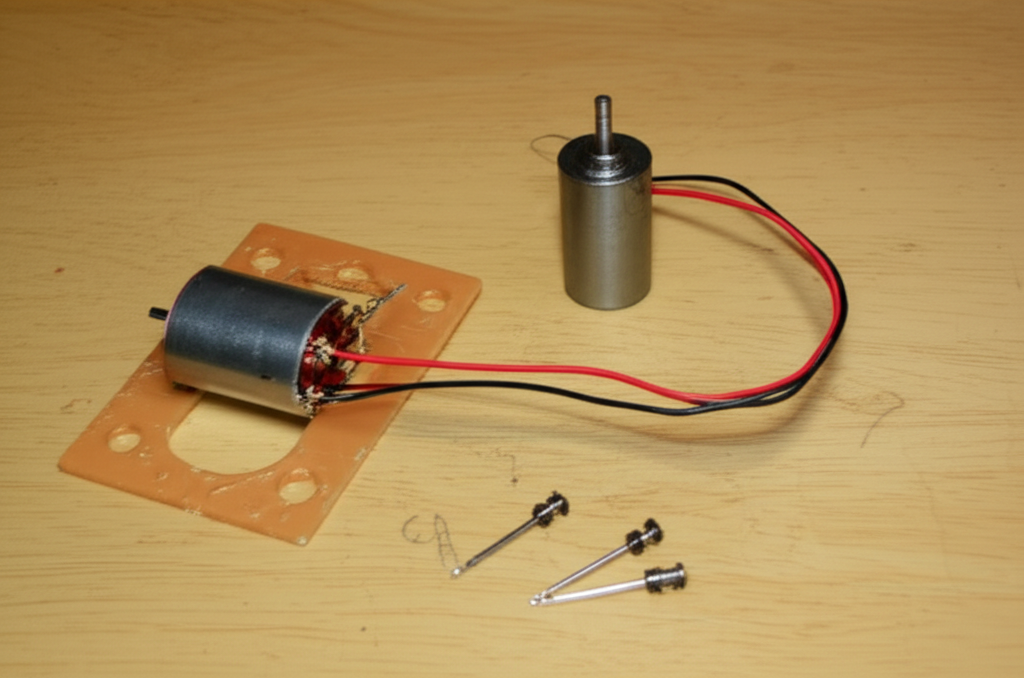

I remember the first time I built a motor from scratch. It wasn’t some complex engine for a car, but a tiny, buzzing creation made from a battery, a magnet, and a coil of wire. The moment it started spinning, I was hooked. It felt like magic, but it wasn’t. It was science, and it was something I could understand and build with my own hands. That’s what I want to share with you today—the simple joy of creating motion from electricity.

This guide will walk you through building your very own simple electric motor. It’s a fantastic project for a science fair, a weekend activity with your kids, or just for your own curiosity. We’ll cover everything you need, from the basic principles to the materials, step-by-step instructions, and even how to troubleshoot if things don’t go perfectly on the first try. Let’s get started.

Understanding the Magic: How Do Motors Work?
The Heart of the Motor: Electromagnetism 101
What Makes it Spin? The Motor Effect
The Key Players: Components of a Simple DC Motor
Gathering Your Tools and Materials
Let’s Build! A Step-by-Step Guide
Step 1: Wind Your Armature Coil
Step 2: Create a Simple Commutator
Step 3: Build Your Supports (Brushes)
Step 4: Position Your Magnet (Stator)
Step 5: Putting It All Together
Step 6: Power It Up!
Troubleshooting: What to Do When It Doesn’t Spin
Taking It to the Next Level: More Motor Fun
Safety First: A Quick Note
The Power You Hold in Your Hands

Understanding the Magic: How Do Motors Work?

Before we start building, let’s quickly touch on the science behind it. It’s actually pretty straightforward and boils down to one fascinating force: electromagnetism.

The Heart of the Motor: Electromagnetism 101

Here’s the core idea: when you pass an electric current through a wire, it creates a magnetic field around that wire. This discovery, made by Hans Christian Ørsted back in 1820, is the foundation of every electric motor. You can’t see this field, but it’s there, wrapping around the wire like an invisible sleeve.

If you wrap that wire into a coil and pass a current through it, you create an electromagnet. The more loops you add to the coil, the stronger the magnetic field becomes. This is a temporary magnet; turn off the electricity, and the magnetic field disappears.

What Makes it Spin? The Motor Effect

So, how do we get from a stationary magnetic field to something that spins? We need another magnet!

Imagine you have your electromagnet (the coil of wire) and a permanent magnet (like one you’d stick on a fridge). Magnets have two poles: a north and a south. Just like with two regular magnets, opposite poles attract, and like poles repel.

When you place your current-carrying coil near the permanent magnet, their magnetic fields interact. One side of the coil will be pushed away from the permanent magnet, while the other side is pulled towards it. This push-and-pull creates a turning force, or what engineers call torque. It’s this torque that makes the coil spin!

The Key Players: Components of a Simple DC Motor

To build our motor, we’ll need a few key parts:

Stator: This is the stationary part of the motor. In our simple design, it’s just the permanent magnet. Its job is to provide a constant magnetic field.

Rotor (or Armature): This is the part that rotates. In our case, it’s the coil of wire. When we send electricity through it, it becomes an electromagnet.

Commutator and Brushes: This is the clever bit. If the current in the coil always flowed in the same direction, the coil would just flip over once and then stop. The commutator is a small switch on the rotor’s axle that reverses the direction of the current every half turn. Our simple version uses stripped ends of the wire and the paper clip holders as brushes to do this job.

Power Source: This is usually a battery, which provides the electrical energy to create the magnetic field in the coil.

Now that we understand the basics, let’s gather our materials and build this thing!

Gathering Your Tools and Materials

One of the best things about this project is that you can build a working motor with items you might already have around the house.

Materials List:

Magnet: A strong magnet is best. Neodymium magnets are fantastic for this, but a good, strong magnet from an old speaker or a hardware store will work too. I’ve even used a stack of strong refrigerator magnets.
Wire: You’ll need about 3-5 feet of enamel-coated copper wire. This is often called “magnet wire.” A gauge between 18 and 22 AWG is ideal. The enamel is crucial because it acts as an insulator, forcing the current to flow through the entire length of the coil instead of taking a shortcut.
Power Source: A D-cell battery is a great choice because it’s stable and provides enough power. You could also use a 9V battery, but it won’t last as long. A battery holder makes connecting things much easier.
Coil Supports: Two large paper clips are perfect for this. They will hold our coil and act as our “brushes.”
Base: A small block of wood or a sturdy piece of cardboard provides a stable platform for your motor.
Connectors (Optional but Recommended): A couple of alligator clip leads will make connecting the battery to your motor a breeze. If not, you can use electrical tape.

Tools:

Wire Strippers or Sandpaper: Essential for removing the enamel from the ends of the wire.
Pliers: Helpful for bending the paper clips into the right shape.
Hot Glue Gun or Strong Tape: To secure everything to the base.

Step-by-Step Guide to Building a Simple DC Motor

Alright, let’s get our hands dirty. Follow these steps carefully, and you’ll have a spinning motor in no time.

Step 1: Construct the Coil (Armature)

This is the heart of your motor. The coil of wire will become an electromagnet when electricity flows through it.

Find a cylindrical object to wrap your wire around. A D-cell battery, a thick marker, or even a glue stick works well. The diameter will determine the size of your coil.

Leave about 3 inches of wire sticking out at the beginning. Now, start wrapping the wire around the cylinder tightly and neatly. Aim for about 20-30 turns. More turns generally mean a stronger magnetic field, but also more weight, so don’t overdo it.

Once you’re done wrapping, leave another 3-inch tail at the other end.

Carefully slide the coil off the cylinder. To keep it from unraveling, take each loose end and wrap it around the coil a few times on opposite sides. Think of it like tying a string around a package. The two ends of the wire should now stick out from the coil, forming an axle.

Step 2: Prepare the Commutator (The Secret to Continuous Spin!)

This is the most critical and often trickiest part. The goal is to create a simple switch that reverses the current every half turn.

Take one of the wire ends extending from your coil. Using sandpaper or a sharp blade (be careful!), completely strip off all the enamel insulation from this end. It should look like shiny, bare copper.

Now, take the other wire end. This is where the magic happens. Place the coil flat on a table. Scrape the enamel off only the top half of this wire. Leave the bottom half of the wire insulated.

Why do this? When the bare half of the wire touches the metal support, the circuit is complete, creating an electromagnet that pushes the coil. As it rotates, the insulated half will come into contact with the support, cutting the power. Momentum carries it around until the bare part makes contact again, and the process repeats, keeping it spinning.

Step 3: Create the Coil Supports (Brushes)

Your coil needs something to rest on that also conducts electricity. This is where the paper clips come in.

Unfold two large metal paper clips.

Bend one end of each paper clip to create a small, open loop or cradle where the coil’s axle can rest.

Secure the other ends of the paper clips to your wooden or cardboard base using a hot glue gun or strong tape. Make sure they are aligned and spaced correctly so the coil can spin freely between them without wobbling too much. These paper clips now act as both the motor’s stand and its brushes, delivering power to the spinning coil.

Step 4: Position the Permanent Magnet (Stator)

The stator provides the magnetic field that your electromagnet (the coil) will push against.

Place your permanent magnet directly underneath the center of where your coil will sit.

Make sure the magnet is close enough to the coil for its magnetic field to be effective, but not so close that it physically touches the coil as it spins.

Secure the magnet to the base with glue or tape.

Step 5: Assemble and Connect the Circuit

Now it’s time to put it all together.

Gently place your finished coil onto the paper clip supports, with the stripped ends resting in the cradles.

Use alligator clips to connect the ends of the battery holder to each of the paper clip supports. Connect the positive terminal to one paper clip and the negative terminal to the other.

Your setup should now look something like a wire coil suspended between two metal supports, with a magnet underneath it and a battery connected to the supports.

Step 6: Test Your Motor!

Here comes the moment of truth.

Give the coil a gentle push with your finger to get it started. If everything is set up correctly, the electromagnetic forces will take over, and the coil should continue to spin on its own! It might wobble a bit, but that little spin is a huge success. You’ve just converted electrical energy into mechanical motion.

Troubleshooting and Optimizing Your Motor

Didn’t work on the first try? Don’t worry! That’s part of the fun of experimenting. Here are some common problems and how to fix them:

My motor isn’t spinning at all:
Check connections: Are the alligator clips making good contact with both the battery holder and the paper clips? Are the coil’s wire ends touching the paper clips?
Check the battery: Is it fresh? A weak battery might not provide enough current.
Check the insulation: This is the most common culprit. Make sure you’ve completely removed the enamel from one wire end and only half the enamel from the other. A little bit of leftover insulation can stop the electricity from flowing. Give it another scrape with sandpaper.

My motor spins for a bit then stops:
Balance is key: Your coil might be lopsided. Try to make it as symmetrical and balanced as possible so it can spin smoothly.
Friction: Is the coil rubbing against the magnet or the supports? Make sure it can spin freely without anything getting in the way.
Weak magnet: A stronger magnet provides a more powerful push. If you have one, try swapping it out.

My motor is weak or slow:
More power! You could try using two batteries in series (for more voltage), but be careful, as this can cause the coil to overheat.
More windings: A coil with more turns of wire will create a stronger electromagnet. However, this also adds weight, so there’s a balance to be found.
Stronger magnet: As mentioned, a more powerful permanent magnet will result in a more powerful motor.

Taking Your Motor Further: Next Steps

Once you’ve built your first simple motor, you’ve opened a door to a whole world of electrical engineering. Here are a few ideas to explore next:

Experiment with variables: How does changing the number of wire coils affect the speed? What about using a bigger magnet or a different type of battery? This is the heart of the scientific method!
Build a homopolar motor: This is an even simpler design that you can make in under a minute with just a battery, a screw, and a small neodymium magnet. It’s a great way to demonstrate the basic principles in a different way.
Investigate real-world motors: Look into how industrial motors are made. They often use advanced materials like high-grade electrical steel laminations in the stator and rotor to minimize energy loss and improve efficiency. The principles are the same, but the engineering is much more precise. For example, a brushless DC motor (BLDC) has a more complex design that uses a BLDC stator core to achieve higher efficiency and longevity.

Safety First: A Quick Note

This experiment is generally safe, but there are a few things to keep in mind:

Heat: The wire coil can get quite hot if you run the motor for a long time, especially if you use a higher voltage battery. Always disconnect the battery when you’re not using it.
Short circuits: Be careful not to let the positive and negative terminals of your battery touch each other directly. This can cause the battery to overheat quickly.
Adult supervision: If you’re a younger builder, it’s always a good idea to have an adult help you, especially with any sharp tools like wire strippers.

The Power You Hold in Your Hands

Congratulations! You’ve just built a working electric motor. You’ve taken a handful of simple components and turned them into a machine that converts electrical energy into motion—the same fundamental principle that powers everything from electric cars to kitchen blenders. I hope this project has not only been fun but also sparked your curiosity about the amazing world of electricity and magnetism. Now, what will you build next?
